San Francisco Oakland Bay Bridge

I was member of the American Bridge / Fluor JV Cable Team. Development of means and methods for the strand hauling at the self anchored suspension span. Conceptual design of the erection equipment; Tramway hauling system, West End hauling system, Floating Arms and Transfer Arms for the strand hauling. Design of the hydraulic cable compactors. Commissioning of the equipment and supervision during cable erection.

This was the second,and last bridge in the San Francisco Bay Area Toll Bridge Seismic Retrofit Program to be completely replaced. The bridge is designed to withstand a 8,3 Moment Magnitude earthquake.

See the new technology here.
Cable installation animation.
AB article on the cable system and installation.

Employed by American Bridge.

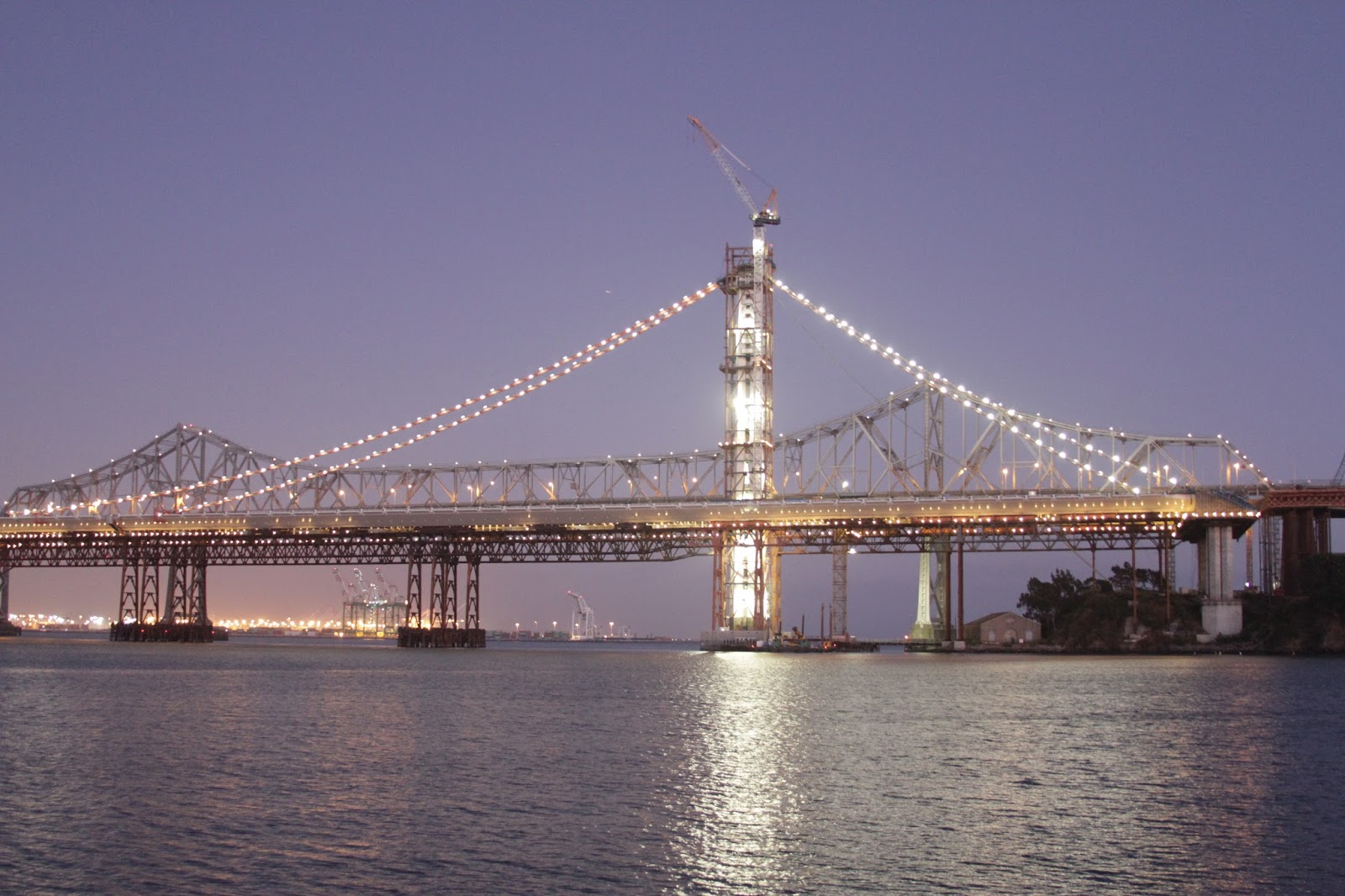

During construction 2012.

The deck supported by s 20.000 mt temporary support bridge.

The steel tower being erected by also a temporary 180 m high steel tower by strand jacking.

Hauling of the first PWS from the East anchorage.

The trolley hauling the PWS under the bride in the Wesr end.
